Factory Direct: Electric Seat Slide Rails For Car Mods

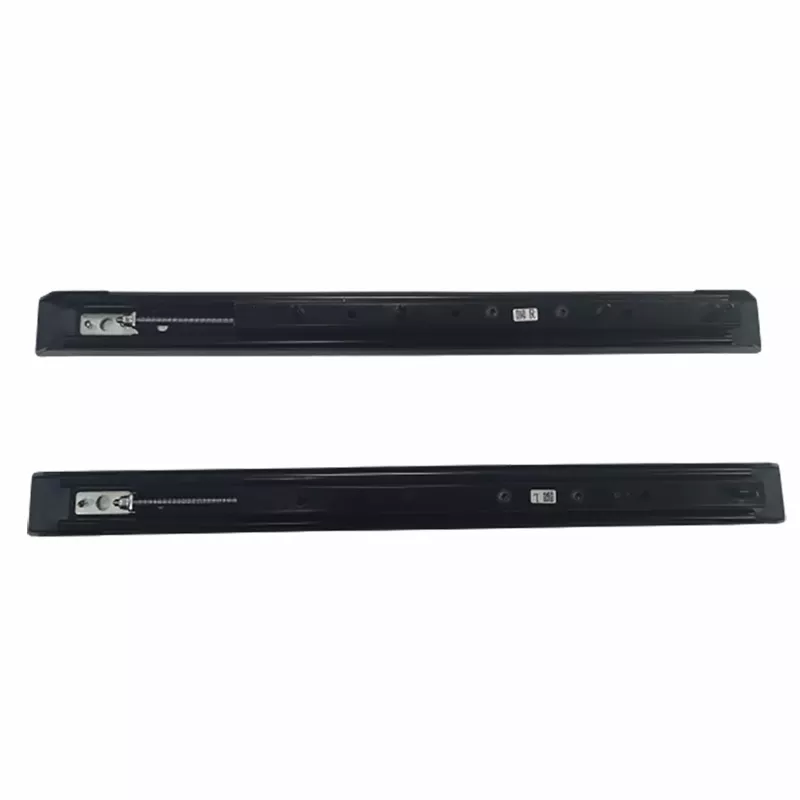

High Quality Car Interior Accessories Electric Seat Slide Rail Adjustable Power Seat Slider Track for Car Modification

Type: Seat Parts Material: Steel Size: 460*47*36.5 mm Model:CJ027-1 Place of Origin: Zhejiang, China Application: Universal Fitment Lead Time:

Quantity(Pieces)	1-100	>100
Est. Time(days)	15	To be negotiated

As a key component of the seat, the car seat slide rail is the fixing device, the adjusting device and the locking device of the car seat. The slide rail is usually made of high-strength steel by laser welding, and is generally composed of an upper slide, a slide, a sliding adjustment mechanism, a locking mechanism (manual slide) and an unlocking mechanism. Common sliding adjustment mechanisms mainly include slide rail type, slider type, slide rod type, rack and pinion type and screw type.

Product	Standard
Max. Travel	70mm to 450mm Recommended 180mm 190mm 240mm 330mm 360mm 400mm
Velocity	18±4mm/s（13 V，load 750N）
Noise	≤50dB
Static strength /single	forward＞22KN，rearward＞ 20KN
Salt spray	96hours
Clearance	X：0.2-0.4mm（actual data）（F=±100 N） Y：0.3-0.5mm（actual data，elastic deformation）（F=±50 N）Overhang 40mm Z：0.1-0.25mm（actual data，elastic deformation）（F=±50 N）Overhang 40mm
Endurance	11000 cycles with 75kg load, in high and low temperature
Temperature test	high 80℃ ，low －40 ℃
Anchorage strength	Keep 16.2KN load for more than 10s.
Front crash	95% dummy50g Dummy 95%, 50g
Back crash	95% dummy，24g Dummy 95%, 24g
